Getting Started

Game Loop

The most basic use of le2d is to create a window and use Dear ImGui in a game(-like) loop.

// create a Context instance.
auto context = le::Context::create();

// loop while context is running (ie, window is open).
while (context->is_running()) {
  // start the next frame. This polls events and waits for any
  // previous renders on the virtual frame to complete.
  context->next_frame();

  // this is the 'tick' / 'update' section.
  ImGui::ShowDemoWindow(); // or draw your own ImGui widgets.

  // submit the frame for presentation.
  context->present();
}

Window Customization

le::Context takes a (default constructed) le::ContextCreateInfo argument, using which the window parameters (among other things) can be customized. Use le::FullscreenInfo for a (borderless) fullscreen window instead.

// all members are constexpr-friendly.
static constexpr auto context_create_info_v = le::Context::CreateInfo{
  .window = le::WindowInfo{.size = {400, 300}, .title = "My Window"},
};
auto context = le::IContext::create(context_create_info_v);
// ...

Drawing Shapes

Drawing a quad is fairly straightforward: create a le::drawable::Quad instance outside the game loop so that its properties persist across frames (it is also lightweight enough to be created/destroyed every frame), start the primary render pass each frame, and issue the draw call. ImGui will be drawn in a separate post-pass, the order of the primary / custom passes vs ImGui::XYZ() commands does not matter.

// ...
// create a quad.
auto quad = le::drawable::Quad{};
quad.create({100.0f, 100.0f});

// loop while context is running (ie, window is open).
while (context->is_running()) {
  // start the next frame. This polls events and waits for any
  // previous renders on the virtual frame to complete.
  context->next_frame();

  // begin the primary render pass.
  auto& renderer = context->begin_render();
    // draw quad.
  quad.draw(renderer);

  // end pass and submit the frame for presentation.
  context->present();
}

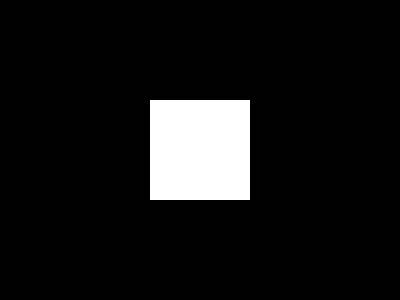

Screenshot of quad

Handling Events

Events are encoded as a variant in le::Event. le::Context maintains an event queue which should be iterated over every frame.

// ...
context->next_frame();

for (auto const& event : context->event_queue()) {
  // handle events here.
  // for example, if you want to close the window on Escape key press:
  if (auto const* key_event = std::get_if<le::event::Key>(&event)) {
    if (key_event->key == GLFW_KEY_ESCAPE && key_event->action == GLFW_PRESS) {
      context->set_window_close(); // set the close flag.
    }
  }
}

// ...

Note that le::Context::set_window_close() doesn't immediately close the window, it just sets the close flag so that le::Context::is_running() returns false in the next game loop iteration. The same flag is set when the user clicks X / requests the window to be closed, and can thus be unset, eg for quit confirmation.

Delta Time

kvf::DeltaTime can be used to track frame time in a central place:

auto context = le::IContext::create(context_create_info_v);

// create a DeltaTime instance.
auto delta_time = kvf::DeltaTime{};
// ...
while (context->is_running()) {
  // ...
  // compute the delta time (in float seconds).
  auto const dt = delta_time.tick();
  // ...
}

Using Assets

Assume the following file structure in the working directory:

assets
├── audio
│   └── explode.wav
├── fonts
│   └── Vera.ttf
└── images
    └── awesomeface.png

A le::FileDataLoader instance can be used to load binary data from files in assets/, and an le::AssetLoader instance to load asset types using any data loader:

// create a FileDataLoader instance, mounting the assets directory.
auto const data_loader = le::FileDataLoader{"assets"};

// create an AssetLoader instance to load shared resources.
auto const asset_loader = context->create_asset_loader(&data_loader);

// TODO: load assets/resources here.

// the waiter blocks on destruction until the context is idle,
// after which the loaded resources can be safely destroyed.
auto const waiter = context->create_waiter();

Drawing a Textured Quad

Load the texture, then simply assign its pointer to quad.texture. It should be evident that textures must outlive drawables that use them:

// ...
// load the image as a Texture.
auto const texture = asset_loader.load_texture("images/awesomeface.png");
if (!texture) { throw std::runtime_error{"Failed to load Texture."}; }

// ...
quad.texture = texture.get();
// ...

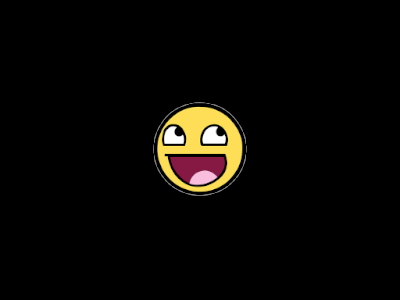

Screenshot of textured quad

Drawing Text

Text can be drawn via le::drawable::Text. Naturally, it requires a loaded le::Font. First make room by pushing the quad up, and set its texture to the loaded one:

// ...
// load the Font.
auto const font = asset_loader.load_font("fonts/Vera.ttf");
if (!font) { throw std::runtime_error{"Failed to load Font."}; }

// ...
// reposition it and set the loaded texture.
quad.transform.position.y -= 30.0f;
quad.texture = &texture;

// create a Text instance.
auto text = le::drawable::Text{};
text.set_string(*font, "hello from le2d!");
// reposition and tint it.
text.transform.position.y += 30.0f;
text.tint = kvf::yellow_v;
// ...

Add the text instance to the draw list:

// ...
quad.draw(renderer);
// draw text.
text.draw(renderer);
// ...

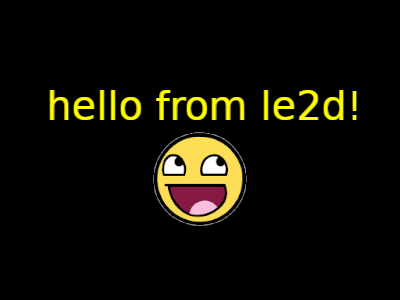

Screenshot of text and textured quad

Playing Sounds

Audio is loaded as capo::Buffer assets. One-shot sound effects can be fired-and-forgotten through le::IAudio::play_sfx(), whereas for music you would want to control playback, volume, etc by owning an Audio Source returned by le::IAudio::create_source().

// load the audio file as a capo::Buffer.
auto const audio_buffer = asset_loader.load_audio_buffer("audio/explode.wav");
if (!audio_buffer) { throw std::runtime_error{"Failed to load Audio Buffer."}; }

// ...
// store playback trigger data.
auto audio_wait = kvf::Seconds{2.0f};
auto audio_played = false;

// ...
// update audio playback.
audio_wait -= dt;
if (audio_wait < 0s && !audio_played) {
  // play the loaded audio buffer.
  context->get_audio_mixer().play_sfx(audio_buffer.get());
  audio_played = true;
}

Needless to say, audio buffers must outlive playback.
